    Hot Rod Tech and Tools Main Page

    Wheel Bolt Pattern Reference


    Try the Wheel Bolt Pattern Cross Reference Database ~ Look-up a vehicle bolt pattern by Make/Model or browse all vehicles with a particular bolt pattern.


    The bolt pattern or bolt circle is the diameter of an imaginary circle formed by the centers of the wheel lugs. Bolt patterns can be 4, 5, 6, or 8 lug holes. The diagram indicates the proper measuring methods.

    Four (4) Bolt

    Measure center to center of two holes directly across from each other.

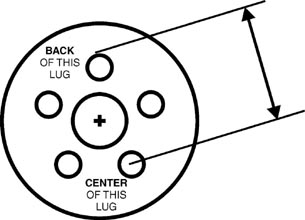

    Five (5) Bolt



    Measure from the CENTER on one hole to the BACK of the third hole. This is the easiest and most accurate way to "Estimate" a 5-lug bolt circle. You can also measure from the CENTER of one hole to the CENTER of the third hole using 1.05 multiplier to find your bolt circle.

    Six (6) Bolt



    Measure center to center of two holes directly across from each other.

    Eight (8) Bolt


    Measure center to center of two holes directly across from each other.

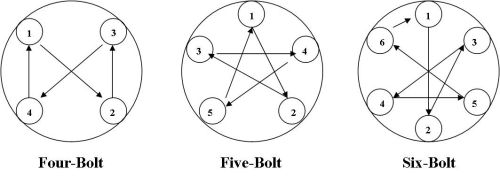

    Wheel Lug Nut / Bolt Torque Sequence
